Electrosurgical Unit Cautery Machine

AM-350A

General information

High-frequency electric knife (high-frequency surgical instrument) is an electrosurgical instrument that replaces mechanical scalpels for tissue cutting. It uses the high-frequency high-voltage current generated by the effective electrode tip to heat the tissue when it comes into contact with the body to achieve the separation and coagulation of the body tissue, thereby achieving the purpose of cutting and hemostasis.

The high frequency electrosurgical unit is composed of the main unit and the electrosurgical knife holder, patient plate, bipolar forceps, foot switch and other accessories

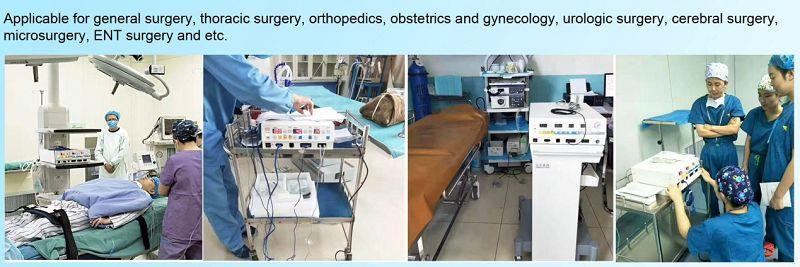

Application:

Features:

It has high performance neutral electrode contact inspection system, which can detect electrode contact area, and system will test and evaluate the effective contact area between electrode and derma, if the contact area was found low to a danger level, system will automatic cutout and gives alarm indication.

High definition large LED indication, with audio & visual indication.

Main unit has automatic monitoring function and mistake indication function

Technical parameters:

1. Ambient temp. range: 5ºC～40 ºC

2. Relative Humidity Range: ≤80

3. Atmospheric Pressure Range: 86.0～106.0kpa

4. Power: 220V±22V, 50Hz±1

5. Operating Freq: 330～460kHz;

6. Rated Power: 1100VA±10%

7. Type: CF

8. Power Consumption: ≤1100VA (Cut function 400W)

Nine output modes:

a) Cut: 400W

b) Blend 1: 250W

c) Blend 2: 200W

d) Blend 3: 150W

e) Electro Coag 1: 150W

f) Electro Coag 2: 120W

g) Electro Coag 3: 100W

h) Bipolar Coag 1: 70W

i) Bipolar Coag 2: 70W

j) Power: 220V±22V,50Hz±1Hz

Cut: Pure cut, can make easy operation for any organic, the effect is refine cut, no escharosis on the surface.

Blend 1: The effect is cut with coagulation, Can use this function together with Endoscope.

Blend 2: The effect is offering a better coagulation during cut, Can use this function together with Argon.

Electro Coag 1: Called strength electrocoagulation, or called surface coagulation, for a deep coagulation layer for organic, small effect area, Can use this function together with Endoscope..

Electro Coag2: Called spray electrocoagulation, offers effective non-contact coagulation, Can use this function together with Argon.

Bipolar Coag 1: Called rapid Bipolar coagulation, to provide coagulation function rapidly at boot, which can reduce mis-operation rate during operation.

Argon: Dual Argon airflow adjustament, accuracy: 0.1 L/min;

Argon pressure range: 0.20 ~ 0.50 Mpa.

Endoscope Interface

Our Electrosurgical unit has micro interface for endoscope, adopts independent intelligent control technology, which can adjust the working mode for this device to be most matching endoscope for minimally invasive surgery.

Package:

Size: 435*395*140mm

Weight: 8Kg,12Kg.

Packing size: 510*460*320mm
