Emergency Cardiac Monitor

AM-2000B 10inch portable cardiac monitor for ambulance

Feature

1. Suitable for bedside,Operation room and ICU,ambulance.

2. Ultra thin design,thickness is 5.2cm only.

3. Support BLE and WIFI,Touchscreen is optional.

4. Standard: ECG.NIBP,Spo2,RESP,TEMP,and pulse

5. Multi-display supported:LCD,HDMI,VGA,etc

6. Support for vehicle 12V,for ambulance.

7. Support Linux and Android operating system.

8. Full view alarm lamp,support IPS LCS display.

9. NIBP module adaptive inflated faster,more accurate.

10. High frequency ECG signal acquisition 3/5/12 leads support,leads off detect

11. Built-in rechargeable Li-battery.

NIBP
1.Work Mode	Manual,automatic,continuous
2.Unit	mmHg,kPa
3.Measure range	Adult:SYS:40-280mmHg, DIA:10-225mmHg,MEAN:20-240mmHg
	Pediatric: SYS:40-220mmHg, DIA:10-160mmHg,MEAN:20-170mmHg
	Neonatal: SYS:40-135mmHg, DIA:10-100mmHg,MEAN:20-110mmHg
4.Resolution	1mmHg
5.Accuracy	±5mmHg port upgrade via nextwrok

RESP
1.Measure range	0-150BrPM
2.Resolution	1BrPM
5.Accuracy	±2%

SPO2
1.Measure range	0-100%
2.Resolution	1%
3.Accuracy	2% (70-100%)
4.Pulse rate	20-250BPM
5.Resolution	1BPM
6.Accuracy	±3BPM

TEMP
1.Measure range	0-50 0C
2.Resolution	0.1 0C
5.Accuracy	±1 0C

Who we are

ADVANCE MEDICALis a professional manufacturer，distributor and exporter of medical electronic instruments since 2006.

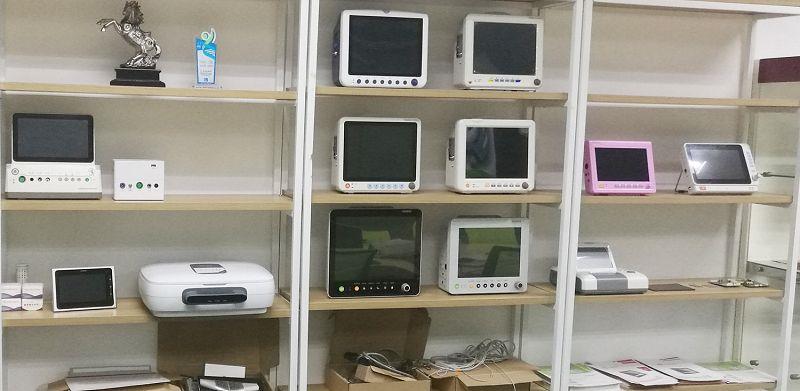

We are a OEM supplier of all kinds of patient monitors and relevant accessories,one stop monitor supplier for you. such as patient monitors,vital sign monitors, Depth anaesthesia monitor, ETCO2 patient monitor, Neonatal multi-parameter monitor and Medical central monitoring system.
