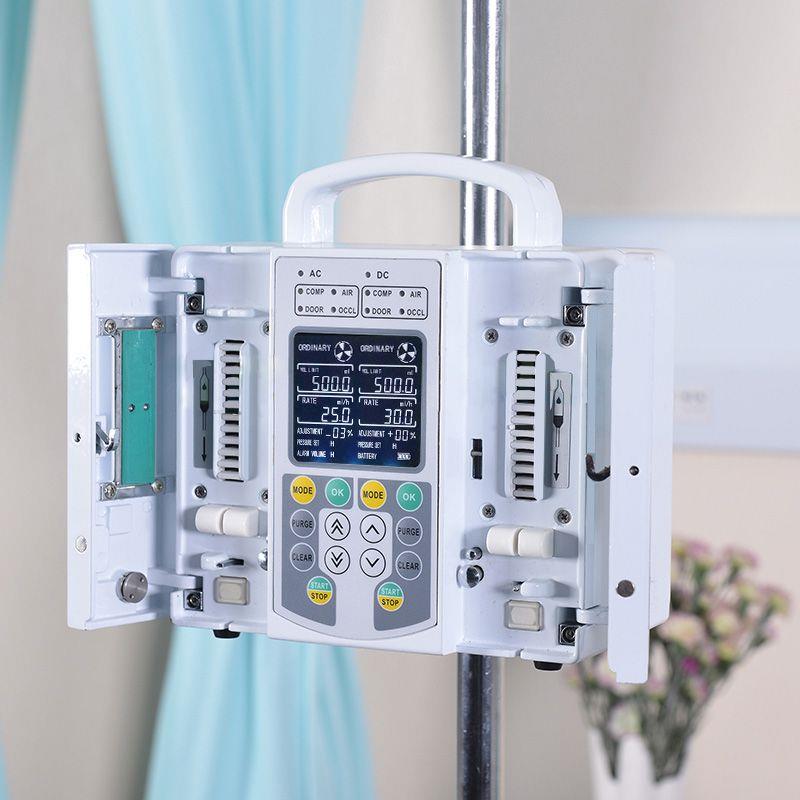

Dual Channel Medical Infusion Pump

AM-602

Keen Alarms

Once the pump works, the alarms (Air, Occlusion, Low battery, door open, infusion complete) start. The pressure of the occlusion can be adjusted through the pressure sensor for suiting different kinds of infusion set.

Adopting to a wide range of voltage

The AG series pump can work normally, when the voltage is from 90V to270V

KVO function

When completing infusion, the pump can switch into KVO automatically

Low power consumption and noise

The total power consumption is less than 18VA and the noise is lowered a lot because of fine circuit design and reasonable mechanical drive

Fine after-sale services

We provide two-year free maintenance and lifelong maintenance for the pump. You can be assured to use the product

Specifications

1) Flow Rate Range 0.1-1200Ml/h

2) Matched Tube Type Match all types(PVC), The special tube should contact supplier

3) Adj. Infusion Range 999Ml

4) Infusion Precision ±3%(Adj.)

5) KVO Speed 1-3Ml/h

6) Beep & Led Alarms Power switch/ occlusion/ air in tube/ door open/ infusion finished/ low battery/ no operate/ tube error installed/ no medicine liquid/tube spoilage

7) Drop Ctl Precision No

8) Drop Scan Sensor No

9) Air Scan Sensor Ultrasonic

10) Pressure Range 30Kpa-160Kpa (High, Middle, Low Adj.)

11) Beep Adj.Range High, low

12) Ac Power AC100V-240V±10% 50Hz-60Hz

13) Insider Battery NI-MH Battery(12V): Infusion time≈4hours with battery

14) Lithium cell(12V): Time≈6-12hours with battery

15) Power consumption Less than: 18VA

16) Security Classification: Class I, BF type

17) Working Condition Temperature: ±5°C-+40°C Humidity 20%-90%

18) Purge:  Yes

19) Ml/h: drop/min Auto Change

20) Dimension: 188*115*196mm

21) Weigh(kg):  3.8

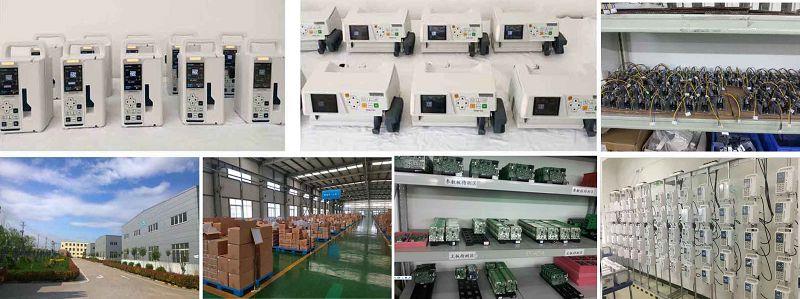

Who we are

Advance Medical is a professional OEM supplier since 2006.

OEM various Infusion pumps,syringe pump, dual channel syringe pump, dual channel infusion pump, TCI target control syringe pump, infusion warmer, etc.

One stop supplier for all your required medical pumps solutions.

Steady quality, reasonable price. professional service.

Exhibitions and customers

We participate exhibition such as CMEF, Medica, etc.

Our syringe pumps and infusion pumps approved ISO13485, CE, FSC and CFDA. exported to more than 40 countries and regions

Our Service:

1. Warranty period: main unit:2 years,accessories:6 months.

2. Technical support: installation,replancement of accessories,after sales service.

3. Return of goods: Yes,for any quality problem.

FAQ

OEM service: Yes,with clients’ informations on machines,manual,packages.

Payment: TT,LC at sight and Westernunion.

MOQ: 1 unit

Free sample: NO

Package and shipping

Delivery date: 3-7 working days after full payment.

Package: strong carton,plastic bag.wooden casing

Goods deliveried by UPS,DHL,by Air or by sea,

All follow customers’ idea.just choose economic ones.
