Open system compatible with all standard IV sets.
Large COLOR TFT display with adjustable brightness.
Manual/Automatic Bolus.
Vertical and Horizontal mounting clamp.

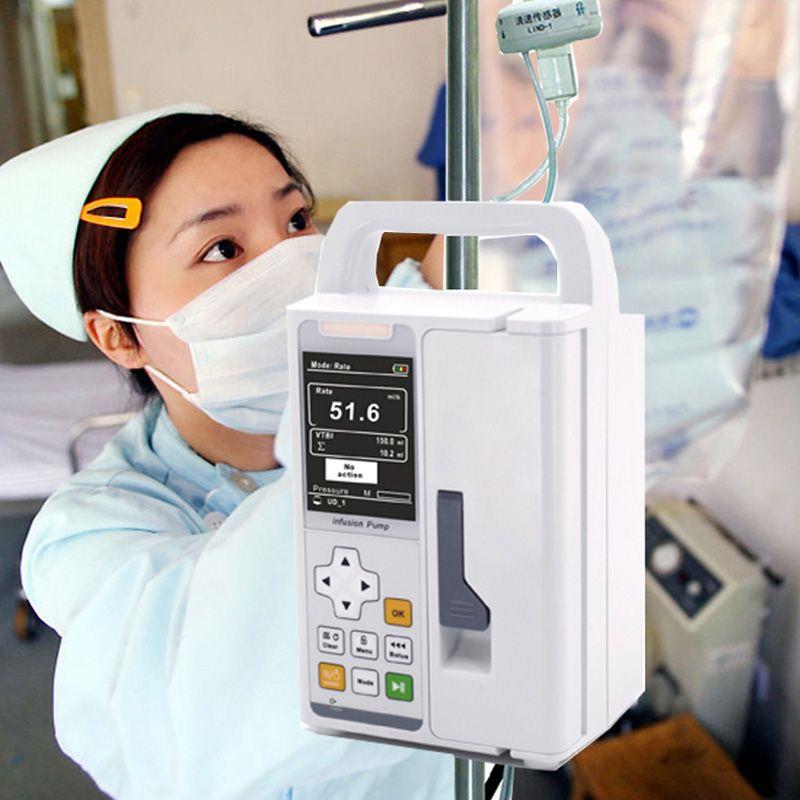

AM-601
Features:
● Open system compatible with all standard IV sets.
● Large COLOR TFT display with adjustable brightness.
● Manual/Automatic Bolus.
● Vertical and Horizontal mounting clamp.
● Anti-bolus system.
● DPS dynamic pressure display.
● 2000 events stored can be checked and downloaded.
● Five work modes: Rate Mode, Time Mode, Dose Mode, Sequential Mode and Drug Library Mode.
● Drug library with 1030 drug names (Optional).
● 8 Hours Internal Battery continuous operation.
● Visual and audible Alarm system and accurate infusion rate for safety and reliability.
● Very accurate and reliable.
● Friendly user interface.
● Dynamically display working status.
● KVO and Bolus functions.
● Automatically record the setting of last infusion.
● Preset Solution Volume for nurse workload reduction.
● Change the flow rate without stop during infusion
● Three levels of the occlusion: high, middle, and low.
● Easy to clean through the open door design.
Technical Specifications
PARAMETER | SPECIFICATION |
Fit IV tubes | Can be used with any brand IV set after exactly calibration |
Pump Type | Peristaltic finger pump |
Accuracy | ±2% |
Delivery rate range | 0.1ml/h~1200ml/h (0.1ml/h~99.9ml/h, 0.1ml/h step; >99.9ml/h, 1ml/h step) |
Delivery time range | 00h01min~99h59min (1 min step) |
Volume limit range: | 0.0-9999ml (1 ml step) |
Total Volume Range | 0.0-9999ml (1 ml step) |
Purge Rate | 600.0ml/h (Adjustable) |
KVO Rate | 0.1~5.0ml/h. Programmable and adjustable |
Occlusion pressure | LOW:60(±15)kPa, MEDIUM: 90(±15)kPa or HIGH: 120(±15)kPa(Programmable and adjustable) |
Alarms | Rate Abnormal, Door Open, Air-in-Line, Occlusion, Bottle Empty, Battery Empty, No Battery, Key Holding During Infusion/ Pause, Infusion Complete, No Action Battery Low
Three levels of alarm volume LOW, MEDIUM or HIGH |
Dose Mode | Volume:0.1-999.9ml(0.1ml step) DRUG MASS:0.1-999.9mg 0.1mg step) DOSE:0.001-9999ug/kg/min(0.001ug/kg/min step) WEIGHT:0.1-300kg(0.1kg the least step) Dose unit: ng/ kg/ min, ug/ kg/ min, mg/ kg/ min, g/ kg/ min, ug/ kg/ h, mg/ kg/ h, g/ kg/ h, ug/ min, mg/ min, g/ min, ug /h, mg /h, g/ h, U/ min, U/ h, IU/ h, U /kg /h, ml/ h |
Bolus function | Bolus rate:1.0~1200ml/h,Bolus volume:1.0~100ml
Programmable and adjustable, Automatic/Manual bolus available |
Drug library Mode | 10 categories of drugs, amounts to 1030 kinds of drug names, 17kinds of dose units, such as ug/kg/min, mg/kg/min,etc.
Makes drug dispensing more convenient and safer. (Optional) (Only for VP3) |
Sequential mode | Available (Only for VP3) |
Interface | RS-232 |
Brightness | 1~10 levels can be selected |
History records | 2000 events stored can be checked and downloaded |
Power source | AC power supply: AC 100 to 240V( +/-10%),50/60Hz;
DC Power supply: 12~15V, power>15W; Built-in Lithium Battery: Rechargeable, 11.1V, 2000mAh. 8 hours of continuous operation |
Accessories: | AC power line, Operational manual |
Protection Class | Class I, Type CF,IPX4 |
Dimension /N.W | 120mm*100mm*215mm , 1.7kg |
Packing size/G.W | 250*190*155mm, 2.5KG |

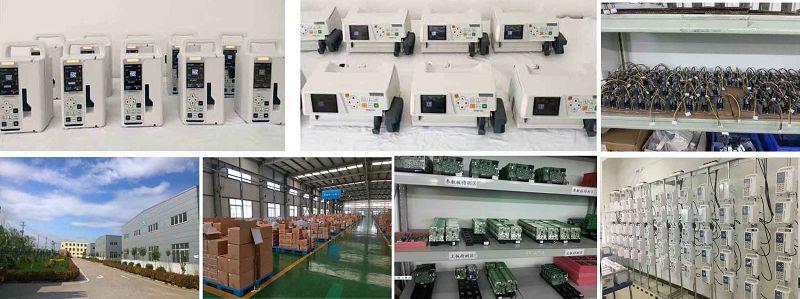

Company information
Advance Medical is a professional OEM supplier since 2006.
OEM various Infusion pumps,syringe pump, dual channel syringe pump, dual channel infusion pump, TCI target control syringe pump,infusion warmer, etc.
One stop supplier for all your required medical pumps solutions.
Steady quality,reasonable price.professional service.
Exhibitions and customers
Our syringe pumps and infusion pumps approved ISO13485,CE,FSC and CFDA. exported to more than 40 countries and regions
Warranty period | 1.Main unit: 24 months.
2.Accessories: 6 months. |
OEM service | Yes,with clients’ informations on machines,manual,packages |
Payment | T/T,LC at sight,Westernunion |
MOQ | 1 unit |
Free sample | NO |
Technical support | installation,replancement of accessories,after sales service |
Return of goods | Yes,for any quality problem |
Package | strong carton,plastic bag,wooden casing |
Delivery date | 3-10 workiing days after full payment |
