It is suitable for intravenous anesthesia, intravenous inhalation combined with anesthesia, painless gastroscopy, painless delivery, sedation, analgesia, maintenance administration of muscle relaxants, and maintenance of cardiovascular drugs.
AM-701
Application
1. It is suitable for intravenous anesthesia, intravenous inhalation combined with anesthesia, painless gastroscopy, painless delivery, sedation, analgesia, maintenance administration of muscle relaxants, and maintenance of cardiovascular drugs.
2. Control the depth of anesthesia with the blood concentration as an indicator to improve the controllability, stability and safety of anesthesia.
3. Real-time display of blood drug concentration, effect concentration change trend.
4. A variety of anesthesia-specific drug selection, the drug is more scientific, safe and reliable.
5. Plasma target control, effect chamber target control, constant-speed injection, hourly injection, body weight mode, etc.
6. Automatically compensate for the discontinuation of drug delivery and smooth control of anesthesia depth
Features
1. Multiple operation modes: Flow rate controlled infusion mode, plasma TCI (target controlled infusion) mode, effect site TCI mode, bolus, intermittent infusion mode.
2. Available drugs Propofol, remifentanil, fentanyl, sufentanil, midazolam, etomidate, rocuronium, vecuronium, atracurium
3. Real-time display shows the trajectory of the plasma and effect site drug concentration and data of anther channel such as plasma concentration, target concentration and volume over time.
4. Automatic drug compensation function for the infusion: when the syringe is replaced, it maintains the concentration required for clinic.
5. Intelligent prediction of patient recovery time
6. Online –BIS transfer data which enable doctor to adjust injection according to clinical conditions.RS-232 communication enable the history data to be transmitted from pump to PC.
7. Data storage
8. Multiple choice for drug unit ,free from the artificial conversion: ml/h,mg/h,ug/h,mg/kg/h,ug/kg/h,mg/kg/min,ug/kg/min ,ml/min,mg /min and ug /min ,which is used for all clinics.
9. Limited-volume set ensure the infusion safety and simply.
10. Avoirdupois mode
11. Bolus, which delivered dose at the maximum rate , ensure the safety of insurance injection.
12. Purge, which evacuate the air in the syringe rapidly before infusion, ensure the safety of insurance injection.
13. It can identify the syringe capacity automatically and support several manufacturers’ disposable syringe. Custom syringe’s setting ensures the accuracy of infusion; expand the range of available syringes.
14. Automatically identify the installed syringe of different capacity after replacement.
15. The important parameter display simultaneously.
16. Syringe pump is designed for stackable and operation independently, easy for mobile. which is easy to operate and convenient for doctor
Safety setting
1. Error-correction software: Correction software of off-gauge parameters function prevent limited does from mismatch.
2. When the infusion for the set volume is complete, the pump will stop and transfer to the KVO function automatically.
3. Manual-operation bolus add drug rapidly and restore the original state after release.
4. Special excessive pressure alarm: According the need of clinic, adjust the pressure alarm from 30 to 110 kPa including adjustable low- medium- high level.
5. Alarm function: Sound, flashing alarm and display screen provide message simultaneously when self-test, parameter overrun, syringe placed incorrectly, empty,occlusion, near empty, AC power fail, low-battery, infusion completion.
6. Intelligent battery system could display the capacity ,which battery can use for more than 2 hours at 5ml/ h after charged for more than 10 hours.
7. Integrated environmental design prevents leakage of liquor.
Specifications
Applicable syringes | 10ml,20ml,30ml,50ml,60ml of any standard |
Range of flow range | 0.1~ 800ml/h (20ml)
0.1~1200ml/h (50/60ml) |
0.1~ 300ml/h (10ml)
0.1~ 600ml/h (20ml) 0.1~ 900ml/h (30ml) 0.1~1200ml/h (50/60ml) 10 ml syringe:0.1~300ml/h; 20 ml syringe:0.1~600ml/h; 30 ml syringe:0.1~900ml/h; 50(60)ml syringe:0.1~1200ml/h in 0.1ml/h increments |
|
(Bolus)
Bolus rate |
300ml/h (10ml)
600ml/h (20ml) 900ml/h (30ml) 1200ml/h (50/60ml) |
Volume of infusion | 0~999999 ml |
Accuracy: | ± 3 %
± 3 % including mechanical accuracy |
KVO rate | 1ml/h |
Occlusion pressure | 3 adjustable levels: 30-110KPa including low- medium- high level |
Alarms | Self-test, AC Power-Failed, Battery voltage-lack, Low-battery, Occlusion, Near empty, Infusion completion, Parameter overrun, Syringe Placed incorrectly |
Operation condition: | Temperature:﹢5℃~﹢40℃; Relative humidity(RH):≤ 80%;
Atmospheric pressure:86.0~ 106.0 kPa |
Power supply | AC: 220V±22V, 50Hz±1Hz;
DC14.4V battery can use for more than 2 hours after charged for 10 hours and charge automatically when the AC power at work. |
Safety Classification | Class II and internal battery Type BF |
Output power | 25 VA |
Dimension(L×W×H) | 300 × 130 × 145 (mm) |
Weight | 2.4 kg |
Company information

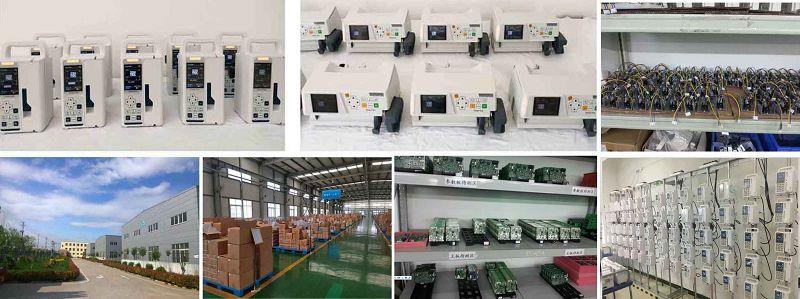

Advance Medical is a professional manufacturer, distributor and exporter of medical electronic equipments, such as syringe pump, infusion pump,TCI target control syringe pump, pump with library, blood infusion warmer, etc. base on good quality and reasonable price.
