Wide range of running speed: 10,000 times wide running speed range greatly increases the user's flexibility. No cleaning is required. Only the syringe needs to be replaced when conveying fluid with different characteristics. Accurate flow: control High accuracy, when ≥30% full stroke, control error ≤ ± 0.5%

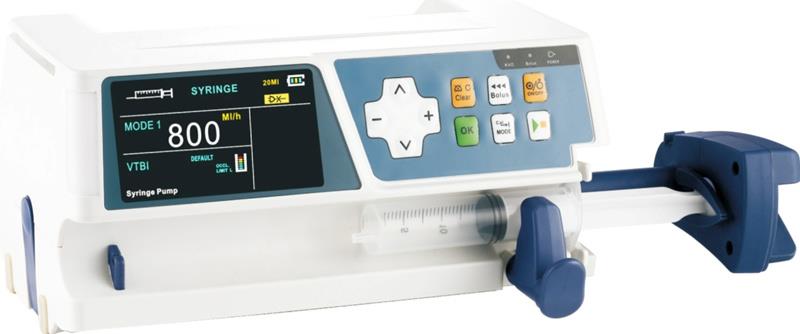

AM-501A
General information
Syringe pump non-pulsation conveying: uniform motion throughout, stable operation without pulsation. Wide range of running speed: 10,000 times wide running speed range greatly increases the user’s flexibility. No cleaning is required. Only the syringe needs to be replaced when conveying fluid with different characteristics. Accurate flow: control High accuracy, when ≥30% full stroke, control error ≤ ± 0.5%
Feature
1. Three work mode: Rate/Time/Dose Mode
2. Vertical & Horizontal mounting clamp;
3. Anti-bolus system;
4. DPS occlusion pressure display;
5. KVO/Bolus Function;
6. Large color LCD display.
7. Power lost memory
Specifications
| Applicable syringes | 5ml, 10ml, 20ml, 30ml, 50ml, 60ml of any standard |
| Accuracy | +/-2% with correct calibration |
| Rate mode | 0.1ml/h-2000.0ml/h (0.1ml/h or 1ml/h step) |
| Time mode | SOL,VOL: 0.1-9999.9ml (0.1ml step)
TIME: 00: 1-99.59min (1min step) |
| Dose mode | Volume: 0.1-999.9ml (0.1ml step)
DRUG MASS: 0.1-999.9mg (0.1mg step) DOSE: 0.001-9999.9 (0.001 setp) WEIGHT: 0.1-300kg (0.1kg step) |
| Total volume Range | 0.1-9999.9ml (0.1ml step) |
| Purge rate | 200ml/h-1800ml/h |
| KVO rate | KVO is 3ml/h when the delivery rate≥100ml/h
KVO is the actual delivery rate when the delivery rate＜1.0/ Othewise KVO is 1.0ml/h |
| DPS occlusion pressure | LOW: 60(±15)kPa,MEDIUM:90(±15)kPa
HIGH: 120(±15)kPa(Adjustable) |
| Alarms | Loose, Occlusion, Empty, Near Empty, Error, Low battery, No battery
Infusion complete |
| Alarm volume | Three levels: LOW,MEDIUM OR HIGH |
| Bolus rate | 0.1-2000ml/h, adjustable |
| Bolus volume | Range:1.0-50.0ml,(0.1ml step) |
| Interface | RS-232 (Optional) |
| Power source | AC power supply: AC 100 to 240V (+/-10%),50/60Hz;
DC power supply: 12-15V,power>15W; Built-in Lithium Battery: Rechargeable,11.1V,2000mAh 12 hours of contibuous operation |
| Protection Class | Class I,Type CF,IP×4 |
| Dimension/N.W | 240mm*150mm*117mm,2.5kg |
| Packing size/G.W | 300mm*260mm*160mm,3.5kg |

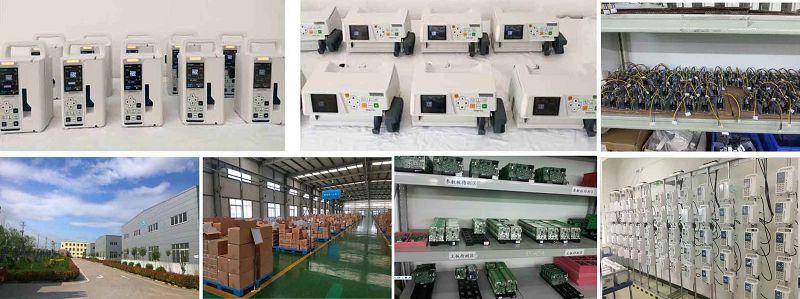

What we do
We provide syringe pump,infusion pump, TCI target control syringe pump, pump with library, blood infusion warmer, etc. one stop supplier for your need. The company sincerely welcomes any forms of OEM or ODM.
All pumps approved ISO13485 and CE,exported to over 40 countries and regions.
Our Service:
1. Warranty period: main unit:2 years,accessories:6 months.
2. Technical support: installation,replancement of accessories,after sales service.
3. Return of goods: Yes,for any quality problem.
FAQ
OEM service: Yes,with clients’ informations on machines,manual,packages.
Payment: TT,LC at sight and Westernunion.
MOQ: 1 unit
Free sample: NO
Package and shipping
Delivery date: 3-7 working days after full payment.
Package: strong carton,plastic bag.wooden casing
Goods deliveried by UPS,DHL,by Air or by sea,
All follow customers’ idea.just choose economic ones.
